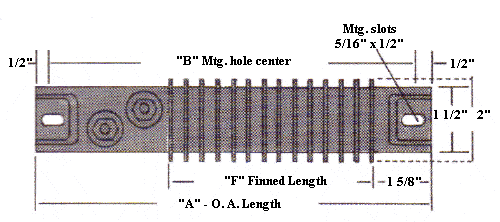

Finned Strip Seamless stainless steel sheath

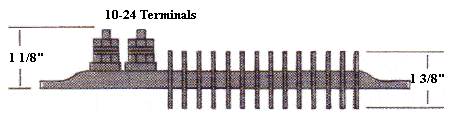

Post terminals
Ceramic element support
Element wire is situated in close proximity to outside surface for maximum heat
transfer and minimum internal temperature while preserving good dielectric qualities.
Magnesium oxide packing
Aluminum fins offering maximum radiating surface and providing for rapid heat transfer
to the surrounding medium. Stainless steel fins are available for corrosive environments.
Aluminum fins are standard.
